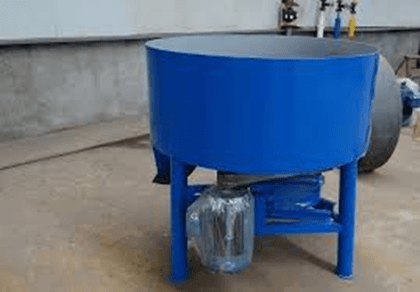

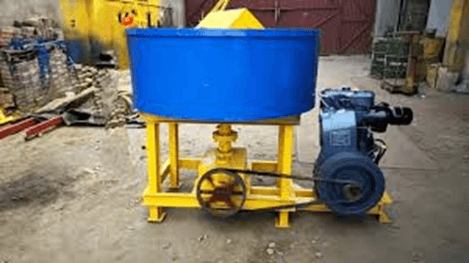

Electronic Pan mixer 500L
A concrete pan mixer is a type of forced-action mixer that uses a stationary pan and rotating blades to produce a fast, high-quality, and uniform mix. Unlike traditional drum mixers, it agitates the material rather than tumbling it, ensuring a thorough blend of all ingredients, including fine pigments and additives. This makes it ideal for producing consistent-strength concrete, mortar, and specialized materials like colored concrete for pavers and tiles. Pan mixers are highly efficient, reduce labor, minimize material waste, and are well-suited for a wide range of construction and precast applications where a superior, lump-free mix is essential.
Category: Construction Machines
Specifications
Feeding capacity
600L
Discharging capable
500L
Motor power
7.5KW
Cycle
35-40s
Mass
600kgs
Overall Size
1500×1500×1300mm
Mixing Volume
17-21m³/h
Diameter
1500mm
