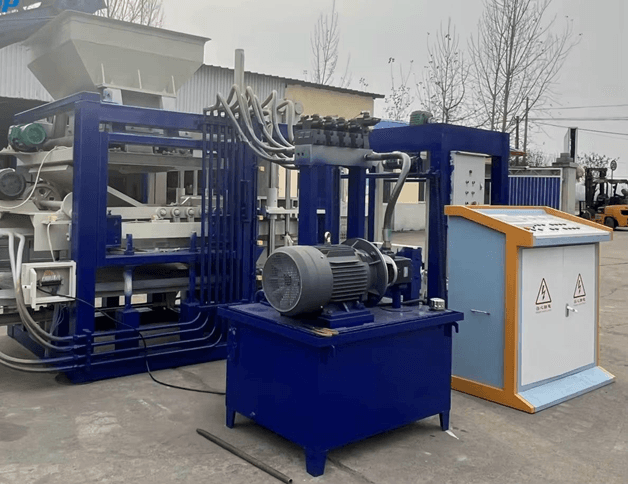

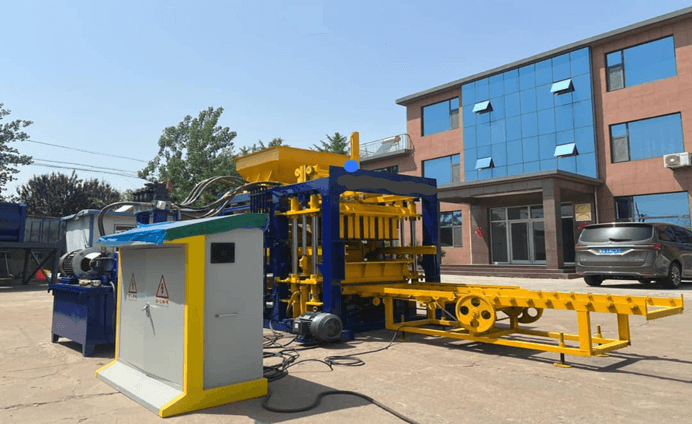

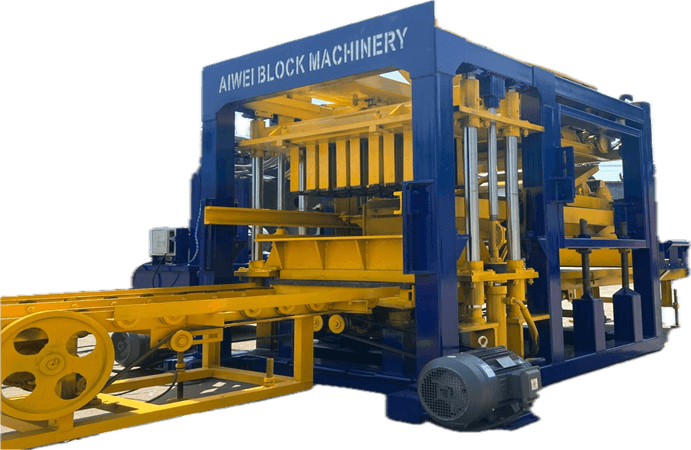

D.QT4-15B Automatic Block Making Machine
Highly efficient, these machines use a computerized control system (PLC) to manage the entire production process from mixing to stacking. They require minimal labor and are ideal for large-scale operations.
Category: Block Machines
Sizes
| Sizes(L*W*H) | Sizes | Moulds | Hours | Shifts |
|---|---|---|---|---|
| 400*200*200 | 8 | 625 | 4 | 5000 |
| 400*100*200 | 4 | 1250 | 7 | 10000 |
| 400*150*200 | 6 | 1000 | 5 | 8000 |
Size(L*W*H)400*200*200
Size(Inches)8
pcs/Moulds625
Pcs/Hours4
Pcs/Shifts (8hrs)5000
Size(L*W*H)400*100*200
Size(Inches)4
pcs/Moulds1250
Pcs/Hours7
Pcs/Shifts (8hrs)10000
Size(L*W*H)400*150*200
Size(Inches)6
pcs/Moulds1000
Pcs/Hours5
Pcs/Shifts (8hrs)8000
Specifications
Dimension of the Host Machine
3,700*2,300*2,600mm
Mould Period
15s
Pallet size
850*450*25mm
Workshop area
160m²
Machine power
26KW
Vibration force
30KN
Mixer model
500L
Voltage
380V
Weight
3,500kgs
